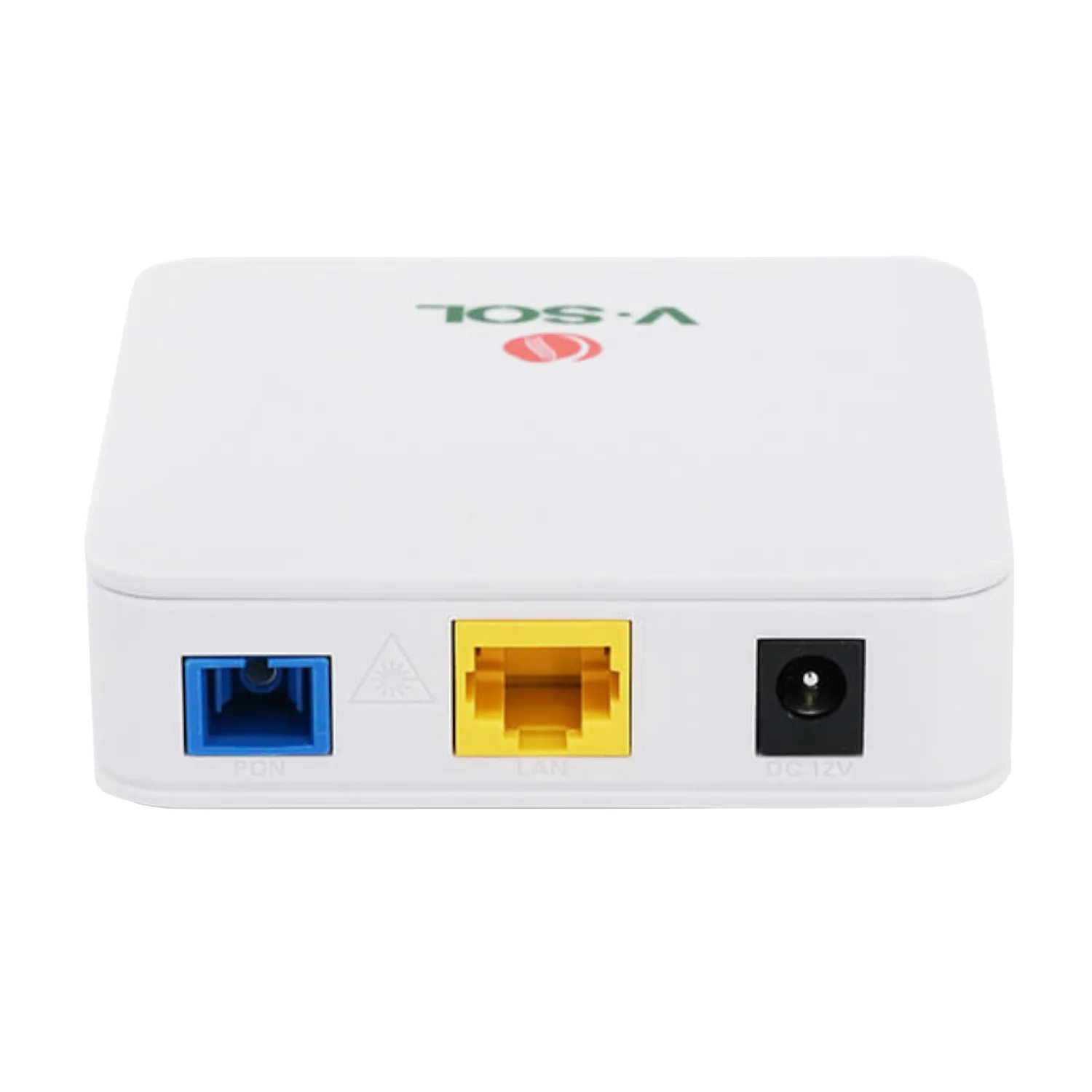

V-Sol V2801SG 1GE+ XPON Optical Network Unit

The V-Sol V2801SG 1GE+ XPON Optical Network Unit (ONU) is a high-performance solution designed to meet the needs of FTTH, FTTD, FTTO, SOHO, and video surveillance deployments. Supporting both EPON and GPON dual-mode connectivity, it offers exceptional flexibility for telecom operators and service providers. With bridge mode and router mode support, the V2801SG adapts seamlessly to various network configurations, ensuring reliable, carrier-grade broadband access for homes and businesses alike.

Engineered for stability, the V2801SG ensures a long-term, consistent connection, even in challenging climates, thanks to its wide-temperature design. It features hardware rogue ONU detection and dying gasp protection to maintain uptime and safeguard network integrity. With a 20km transmission distance and high optical sensitivity, this ONU is built to deliver robust performance in both urban and remote installations.

Security is at the core of the V2801SG. Its integrated firewall chipset includes Anti-DDoS, Anti-virus, and filtering capabilities based on ACL, MAC, URL, whitelist, and blacklist rules. These advanced security measures protect networks from malicious attacks and unauthorized access, ensuring safer internet connectivity. Additionally, QoS features guarantee stable performance for critical services, whether for business productivity, home entertainment, or surveillance systems.

Designed with a compact form factor, the V-Sol V2801SG offers desktop and wall-mount installation options, making it suitable for a variety of spaces. Its small footprint saves space while maintaining full functionality, and the easy plug-and-play setup simplifies deployment. Whether you’re a telecom operator looking for scalable ONU solutions or an end user seeking a fast, stable, and secure fiber connection, the V-Sol V2801SG delivers performance and reliability in a sleek package.

FEATURES:

• XPON Dual Mode
• Automatic access to EPON/GPON
• Powerful firewall
• Prevent Rogue ONT
• Wide Temp Design
• Security ONT
• Secure and dependable

SPECIFICATIONS:

• Power adapter: DC 12V, 0.5A, external AC-DC power adaptor
• Power supply: ≤4W
• Interfaces: 1GE
• Indicators: SYS, LINK/ACT, REG
• PON interface:
  • 1 XPON port(EPON PX20+ & GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or - 8dBm(GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
• LAN interface: 1x GE, Auto-negotiation RJ45 connectors
• XPON Mode: Dual mode, Auto-access to EPON/GPON OLT
• Uplink Mode: Bridging and Routing Mode
• Abnormal protection: Detecting Rogue ONU, Hardware Dying Gasp
• Firewall: DDOS, Filtering Based on ACL/MAC/URL
• Product Features:
• Basic:
  • Support MPCP discover & register
  • Support authentication Mac/Loid/Mac+Loid
  • Support Triple Churning
  • Support DBA bandwidth
  • Support auto-detecting, auto-configuration, and auto firmware upgrade
  • Support SN/Psw/Loid/Loid+Psw authentication
• Alarm
  • Support Dying Gasp
  • Support Port Loop Detect
  • Support Eth Port Los
• LAN
  • Support Port rate limiting
  • Support Loop detection
  • Support Flow control
  • Support Storm control
• VLAN
  • Support VLAN tag mode
  • Support VLAN transparent mode
  • Support VLAN trunk mode(max8vlans)
  • Support VLAN 1:1 translation mode(≤8vlans)
• Multicast
  • Support IGMPv1/v2/Snooping
  • Max Multicast vlan 8
  • Max Multicast Group 64
• QOS
  • Support 4 queues
  • Support SP and WRR
  • Support 802.1P
• L3
  • Support IPv4/IPv6
  • Support DHCP/PPPOE/StaticIP
  • Support Static route
  • Support NAT
• Management
  • Support CTC OAM2.0 and 2.1
  • Support ITUT984.x OMCI
  • Support WEB
  • Support TELNET
  • Support CLI
• Product Dimensions: 8.2 x 8.2 x 2.5 cm
• Product Weight: 85g

WHAT'S IN THE BOX:

• V-Sol V2801SG 1GE+ XPON Optical Network Unit x1
