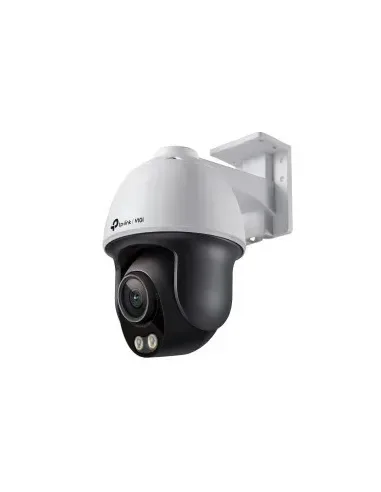

TP-Link VIGI C540S 4MP Outdoor ColorPro PTZ Camera

The VIGI C540S is a 4 MP outdoor PTZ camera designed for comprehensive surveillance. It delivers high-resolution video and features ColorPro technology for true full-colour night vision, even in extremely low light conditions (0.0005 Lux), supported by a large F1.0 aperture and a built-in white LED. Its pan-tilt-zoom mechanism provides a complete 360° horizontal pan and a 0–105° vertical tilt, which can be configured with up to 300 presets and 8 patrol routes for automated monitoring of wide areas. The 4 mm fixed lens offers a 104° horizontal field of view. Advanced AI-powered analytics enable the camera to accurately classify humans and vehicles, reducing false alarms. It also supports smart detection functions such as line-crossing and intrusion detection. For proactive security, the C540S includes an active defense system with a strobe light and audio alarm, complemented by two-way audio communication. Video footage is efficiently managed using H.265+ compression and can be stored locally on an SD card. The camera is built with an IP66-rated weatherproof housing for reliable outdoor operation. Management is flexible through the VIGI App, Security Manager software, web interface, or integration into existing systems via the ONVIF protocol.

Key features

• 4MP
• 4mm Fixed Lens
• 1/1.79” Progressive Scan CMOS
• H.265+/H.265/H.264+/H.264
• White LED
• 25fps/30fps (2688 × 1520)
• IP66
• PoE/DC 12V
• 120dB WDR
• Built-in Mic/Speaker
• micro-SD Slot (up to 512GB)
