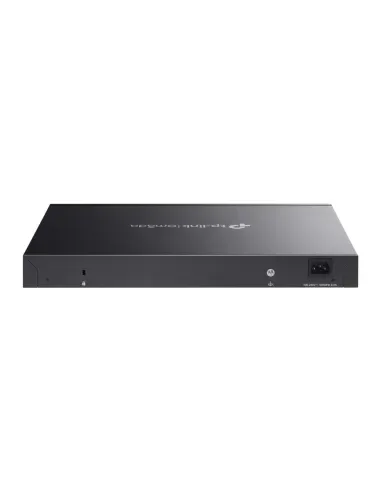

TP-Link Omada 24-Port PoE++ L3 Switch

The TP-Link Omada SG3428XPP-M2 is a 24-port Gigabit stackable Lite L3 managed switch engineered for business networks requiring high power and performance. It features 24 Gigabit PoE++ ports compliant with the 802.3bt/at/af standard, delivering a total power budget of 500 W for devices such as Wi-Fi 6 APs and PTZ cameras. High-speed connectivity is provided by four 10 Gbps SFP+ slots, which supply substantial uplink bandwidth. This switch supports physical stacking for up to 8 units, enabling simplified management and increased reliability from a single IP address. Core functionalities include integration with the Omada SDN platform for centralised cloud management, Lite L3 features like static routing for network segmentation, and comprehensive security policies including ACL, Port Security, and 802.1X authentication. Additionally, QoS and IGMP Snooping are included to prioritise and optimise voice and video traffic.

Key features

• 16× Gigabit PoE+ Ports
• 8× Gigabit PoE++ Ports (up to 90 W/port)
• 4× 10G SFP+ Slots
• RJ45/ USB Type C Console Port
• 1× USB2.0 Port802.3bt/at/af
• 500W PoE Power
• 1U 19-inch Rack-mountable Steel Case
