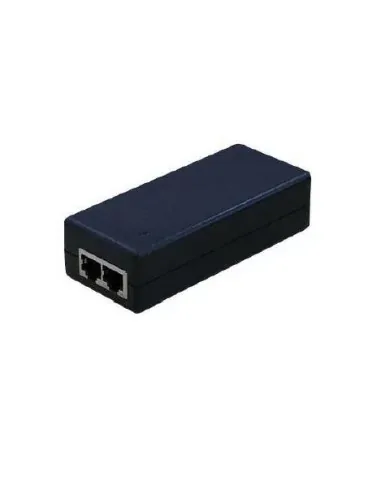

Gigabit Power over Ethernet (PoE) Injector. 24V, 1.25A, Passive, 30 watt.

The Acconet POE-24V-30WPG (PSE4805-24-G) passive PoE injector delivers 24V DC power and Gigabit data transmission through a single Ethernet cable. It is designed to power 24V PoE devices, including wireless access points, IP phones, and security cameras, in areas without accessible power sources. This injector features two Gigabit RJ45 ports for data input and PoE output, enabling wire-speed switching and jumbo frame transmission for enhanced network performance. Its plug-and-play design requires no configuration, and it includes electrical protections against under-voltage, over-voltage, over-current, and short-circuits to maintain system stability and longevity. Key specifications include a 24V passive PoE output at 1A (maximum 25W), 1000M RJ45 ports, 12+/36- power pinout, auto MDI/MDIX, and store-and-forward switching. The device has a mean time between failures (MTBF) exceeding 100,000 hours and complies with EN55022 Class B (CE & RE) standards. Operating temperature ranges from 0°C to 40°C, while storage temperature ranges from -40°C to 80°C, with humidity tolerances of 10%–90% RH (operating) and 5%–90% RH (storage). The power input is 100–240V AC, 50/60Hz. Dimensions are 114mm x 47mm x 32mm, and it weighs 0.2kg. This compact PoE injector is designed for applications requiring reliable power delivery.
