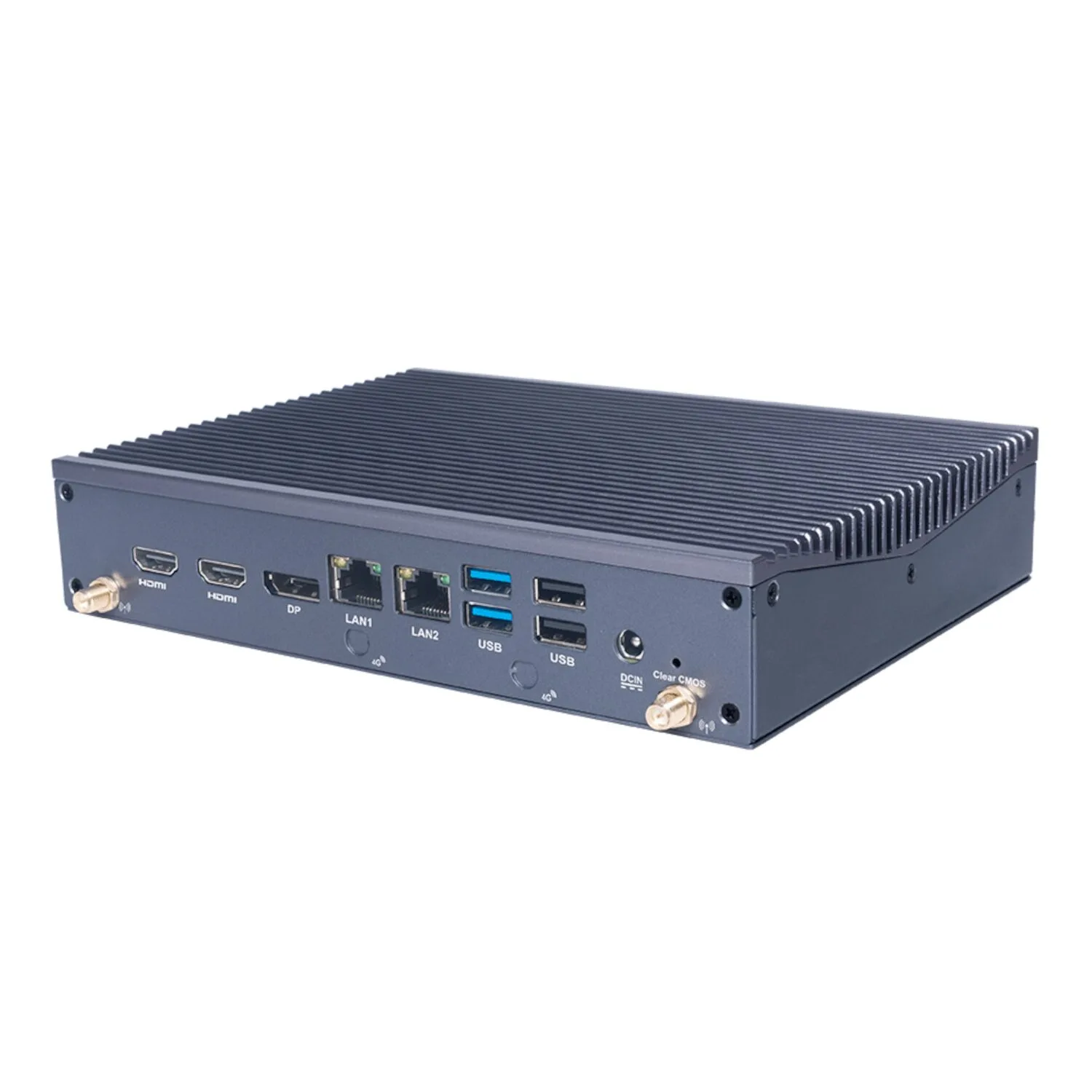

Giada DF613-I i5-1335U Raptor Lake Fanless Signage Player

The Giada DF613 Fanless High-Performance PC is a compact, industrial-grade computing solution engineered for demanding digital signage and edge computing environments. Powered by Intel’s 13th Gen processors, this robust system delivers high-efficiency performance with ultra-low power consumption. It is ideal for mission-critical deployments in retail, transportation, and smart city infrastructures.

Designed to operate silently, the Giada DF613 Fanless High-Performance system features a fanless thermal architecture that ensures consistent and reliable performance in noise-sensitive or dust-prone environments. Support for 8K resolution and quad display output enables vivid, immersive visual experiences for content-driven applications, including multi-screen digital signage and real-time analytics.

Connectivity is optimised with dual LAN ports, multiple USB and COM interfaces, and a high-speed M.2 slot for flexible expansion. TPM 2.0 support and industrial-grade stability ensure the Giada DF613 Fanless High-Performance PC meets enterprise-level security and reliability standards.

Whether deployed in harsh industrial settings or modern commercial spaces, the Giada DF613 Fanless High-Performance system is purpose-built for uninterrupted 24/7 operation, offering superior longevity, energy efficiency, and deployment versatility.

FEATURES:

• Fanless, ultra-silent design
• Intel® 13th gen CPU support
• Supports up to 8K display ultra-high-definition visuals
• Quad display output for enhanced content delivery and multi-screen setup
• 8 Bi-directional GPIO port (10-pin Phoenix)
• Dual LAN with teaming ensures stable, high-throughput networking
• Rich I/O interface: HDMI, DisplayPort, USB, COM ports, and M.2 expansion
• TPM 2.0 security module enables enterprise-grade data security and hardware-based encryption
• Industrial-grade reliability built for 24/7 operation in commercial, industrial, and embedded system environments
• Compact, slimline form factor space-saving chassis facilitates easy integration into space-constrained installations

SPECIFICATIONS:

• CPU
• CPU: Intel® CoreTM i5-1335U processor
• E-Core Frequency: 3.30 GHz
• P-Core Frequency: 4.50 GHz
• Chipset: SoC
• Processing Units: 6 Cores
• Base Power: 15 W /15 W
• Network
• Network Controller:
• 1 x Intel i219-LM Gigabit Ethernet
• 1 x Realtek RTL8111H Gigabit Ethernet
• Ethernet Interface: 2 x RJ45
• Wi-Fi/BT:
• 1 x E-Key M.2 (2230) for Wi-Fi/BT
• Support Wi-Fi 5/6/6E (CNVi)
• Mobile Network:
• 1 x B-Key M.2 (3042) for 3G/4G,
• 1 x SIM Slot
• System
• System Memory: Up to 64 GB, 2 x SO-DIMM DDR4-3200 MHz
• Storage: 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
• Watchdog Timer :Yes
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Power Requirement: DC-IN, 19 V/4.74 A
• Dimensions: 20 x 15 x 4 cm
• Construction: Metal, Grey
• Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
• Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
• Certifications: CE, FCC Class B, UKCA
• Humidity: 95% @ 45°C (non-condensing)
• Display
• GPU: Intel® Iris® Xe Graphics (Core i5)
• Graphic Engine:
  • DirectX 12.1, OpenGL 4.6, Opencl 3.0,
  • 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• Display Interface:
  • 1 x DP (Max.7680 x 4320 @60 Hz)
  • 2 x HDMI (Max.4096 x 2304 @60 Hz)
• # of Displays Supported: 3
• I/O interface
• USB
  • 1 x USB Type-C,
  • 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
• GPIO: 8 bi-directional GPIOs (10-pin Phoenix)
• Serial Port:1 x RS232, 1 x RS232/422/485
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna
  • 2 x Connector for Wi-Fi/BT
  • 2 x Connector for 3G/4G (Reserved)
• Dimension: 20 x 15 x 4 cm

WHAT'S IN THE BOX:

• Giada DF613-I i5-1335U Raptor Lake Fanless signage Player x1
