DeepCool CH260 Wood mATX Gaming Chassis White

High-airflow Micro-ATX gaming chassis | Natural wood-grain aesthetic | Full-size GPU support | Tempered glass side panel | Flexible radiator and fan compatibility

Quick Specs

• Build compact without compromise — supports Micro-ATX and Mini-ITX motherboards in a space-saving 438 x 225 x 312.5 mm footprint.
• Keep your system cool with wraparound mesh panels and support for up to a 360mm AIO radiator on top.
• Showcase your build through a tempered glass side panel paired with a distinctive wood-grain I/O bezel.
• Accommodate full-size GPUs up to 388mm in length, or up to 413mm when no front fans are installed.
• Connect with ease via two USB 3.0 ports, a Gen2 Type-C port, and an Audio/Mic combo jack on the front I/O.

Small on Space, Big on Capability

The DeepCool CH260 Wood White is a compact Micro-ATX gaming chassis built for builders who refuse to sacrifice performance for a smaller footprint. Evolved from DeepCool's acclaimed CH160 ITX case, the CH260 scales up to accommodate Micro-ATX and Mini-ITX motherboards while inheriting the same high-airflow philosophy. The distinctive wood-grain I/O bezel sets it apart from the crowd, lending a furniture-like warmth that sits just as naturally on a desk as it does inside a modern gaming setup. If you want a compact gaming PC case that balances serious thermal performance with genuine aesthetic character, the CH260 Wood White delivers on both fronts.

Uncompromised Airflow in a Compact Frame

Tired of small cases that throttle your hardware with poor ventilation? The CH260 Wood White addresses this head-on with perforated mesh panels across the top and front that draw cool air through the system efficiently. The case supports up to six 120mm fan positions in total — two at the front, three on top, and one at the rear — while the top panel accommodates radiators from 120mm right up to a 360mm AIO liquid cooler. For tower coolers, there is clearance for CPU heatsinks up to 174mm tall. Three removable dust filters make keeping the interior clean a straightforward task.

Full-Size Hardware, Compact Footprint

Don't let the mATX form factor fool you — the CH260 Wood White is engineered to house full-size components without compromise. Graphics cards up to 388mm in length fit comfortably, and if you forgo front fan placement, that clearance extends to 413mm, opening the door to even the most demanding discrete GPUs on the market. The ATX PS2 power supply bracket is removable, freeing up space for more comfortable cable management. A wider 29.6mm backplane clearance also accommodates rear-connector Micro-ATX motherboards, keeping this chassis firmly future-ready.

A Natural Aesthetic That Stands Out

The CH260 Wood White pairs the clean lines of a white chassis with a wood-grain textured I/O bezel that adds warmth and character to any build. The tempered glass side panel gives you a clear view of your internal components, while the perforated top and front panels can be further personalised with the included PIXEL rubber bits. Four independent, reusable PCIe expansion slot covers and tool-free access to the front panel round out a building experience designed to be as practical as it is satisfying.

Features

• Supports Micro-ATX (including rear-connector) and Mini-ITX motherboards with a 29.6mm backplane clearance for rear-connector boards.
• Tempered glass side panel provides a clear showcase of your build.
• Distinctive wood-grain I/O bezel for a natural, furniture-like aesthetic.
• Accommodates GPUs up to 388mm (or 413mm without front fans installed).
• CPU cooler height clearance up to 174mm for large tower heatsinks.
• Top radiator support for 120mm, 140mm, 240mm, 280mm, and 360mm radiators; rear support for 120mm.
• Fan support: front 2x120mm, top 3x120mm or 2x140mm, rear 1x120mm.
• Front I/O: 2x USB 3.0, 1x Gen2 Type-C, 1x Audio/Mic combo jack.
• Removable PSU mounting bracket for easier cable management; supports ATX PS2 PSUs up to 150mm in length.
• Three removable dust filters for straightforward maintenance.
• 1x 3.5-inch and 1x 2.5-inch drive bay for storage flexibility.
• 4 expansion slots with independent, reusable PCIe covers.

Specifications

• Colour: White
• Warranty: 24 Months
• Product Weight: 5.3 kg
• Product Dimensions (L x W x H): 43.8 x 22.5 x 31.25 cm
• Motherboard Support: Mini-ITX, Micro-ATX
• Side Panel: Tempered Glass
• Included Fans: None
• Max GPU Length: 388 mm
• Max CPU Cooler Height: 174 mm
• Radiator Support: Top: 120mm, Top: 140mm, Top: 240mm, Top: 280mm, Top: 360mm, Rear: 120mm
• Front I/O: USB 3.0 x2,Gen2 Type-C x1,Audio/Mic x1

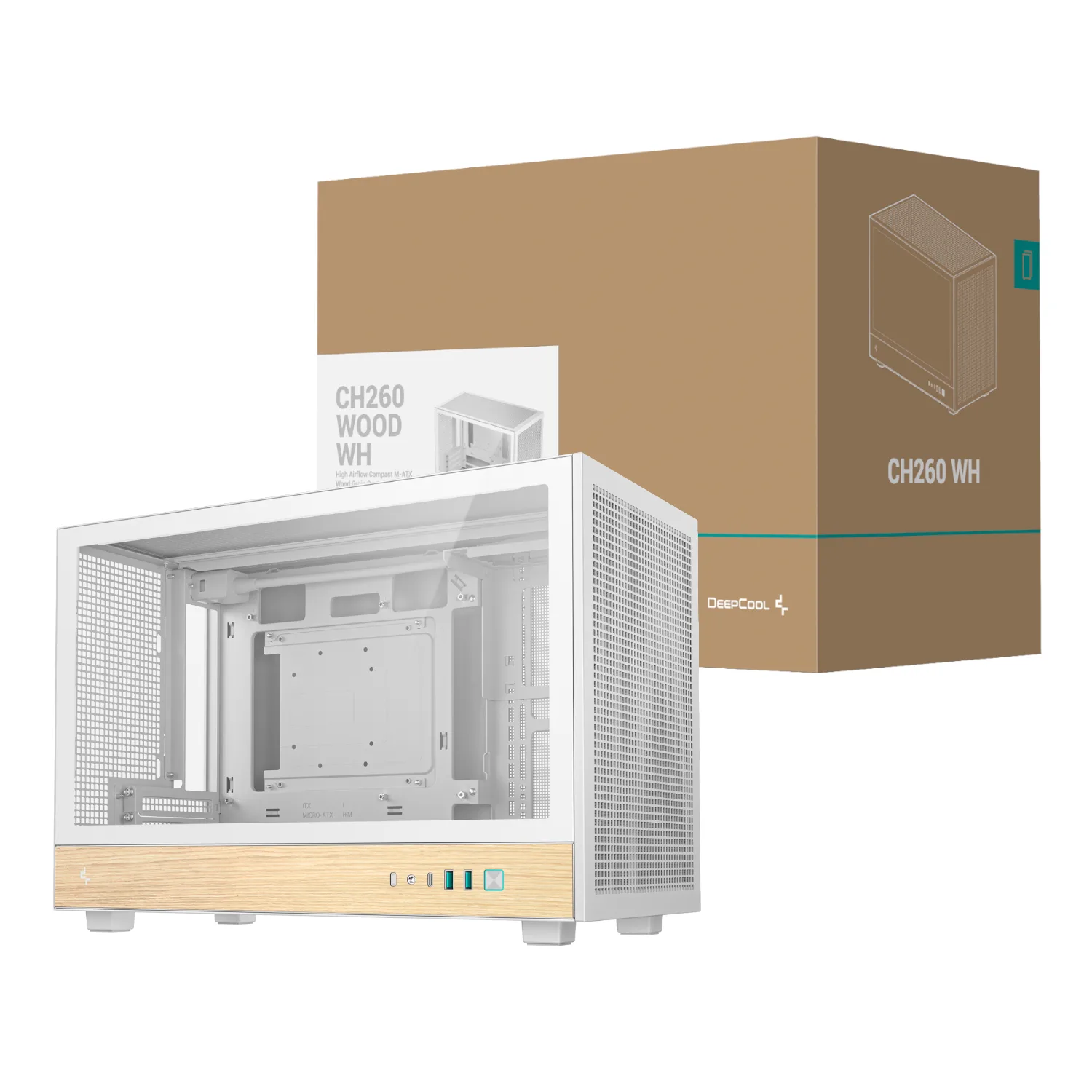

What's in the Box

• DeepCool CH260 Wood Gaming Chassis - White x1
• Top Module x1
• Right Side Panel x1
• Tempered Glass Side Panel x1
• Bezel for IO x1
• Fan Bracket x2
• PSU Bracket x1
• Dust Proof Net A x2
• HDD Mount x1
• Dust Proof Net B x1
• Front Module x4
• PSU Cable x1
• PSU Screws x6
• Motherboard Screws x15
• HDD Screws x9
• Fan Screws x12
• Sunk Screws x4
• Cable Ties x11

Why DeepCool

DeepCool has built its reputation on engineering cooling solutions and chassis that deliver genuine thermal performance without compromise. The CH260 Wood White is a product of that commitment — a compact gaming case that proves you don't have to choose between a capable build and a design worth showing off.
