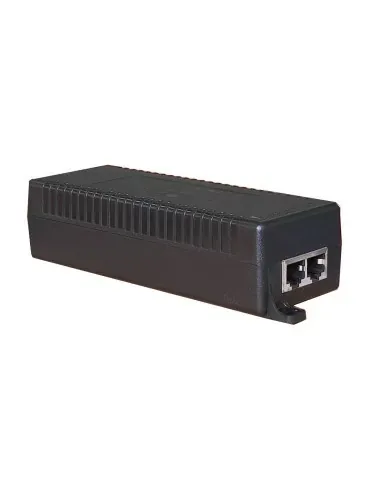

Acconet 10Gbps Passive PoE Injector, 48V, 0.625A, 30W

The Acconet AC-POE-48V-30WP-10G is a 48V, 30W Power over Ethernet (PoE) injector that delivers both power and data through a single Ethernet cable. This injector is designed for 10GBase-T, making it compatible with contemporary network infrastructures and high-bandwidth applications. It is particularly useful in environments with low port density, powering devices such as wireless access points, IP security cameras, and VoIP phones. The AC-POE-48V-30WP-10G supports Ethernet speeds of 10/100/1000 Mbps, 2.5G, 5G, and 10G, ensuring seamless integration into high-speed network setups. Its compact design includes an integrated AC/DC converter, removing the need for external power supplies. The device features built-in surge protection (3kV on the AC port and 2kV on the RJ45 port) to protect connected equipment. Key specifications include a 48V PoE output at 0.55A (maximum 30W), a power pinout of 1/2 (+) and 3/6 (–), a transmission distance of up to 100 metres at 2.5Gbps, and up to 30 metres at 10Gbps. Clear LED indicators provide status for AC and channel power. This plug-and-play device requires no configuration and has dimensions of 175mm x 65mm x 30mm.

Key features

• 10Gbps 30W Passive PoE injector
